Model PA Anchor Clamp
Pipe Guides and Anchors
The PA Anchor Clamp is a lightweight anchor that was created to be used with low load expansion joints, including the Metraflex Metraloop, V-Loop, and Dog Leg.
Product Description
Product Highlights
Additional Resources
Submittals
Product Description
The PA Anchor Clamp is a lightweight anchor that was created to be used with low load expansion joints, including the Metraflex Metraloop, V-Loop, and Dog Leg.
Product Highlights
- The PA Anchor clamp simply clamps to the pipe, no welding required.
- For copper pipe applications, dielectric felt shims are installed.
- Manufactured in accordance to Manufacturer’s Standardization Society (MSS) SP 58 and SP89 with ASTM A134 carbon steel and fusion bonded powder coating.
Additional Resources
Submittals
PA Anchor Clamp Submittal

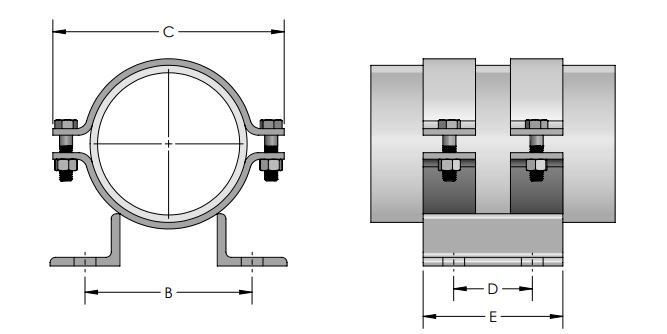

Model PA Anchor Clamp Model Selection Chart
| PART NUMBER | PIPE SIZE | A | B | C | D | E | BOLT HOLE | WEIGHT (LBS.) | 3D DRAWING |
|---|---|---|---|---|---|---|---|---|---|
| PA0075 | 3/4″ | 2-1/8″ | 3-3/8″ | 3-5/8″ | >2-3/4″ | 4 | 5/8″ | 3 | Revit/CAD |
| PA0100 | 1″ | 2-1/8″ | 3-3/8″ | 3-5/8″ | 2-3/4″ | 4 | 5/8″ | 3 | Revit/CAD |
| PA0125 | 1-1/4″ | 2-3/8″ | 3-3/8″ | 3-5/8″ | 2-3/4″ | 4 | 5/8″ | 3 | Revit/CAD |
| PA0150 | 1-1/2″ | 2-1/2″ | 3-3/8″ | 4-5/8″ | 2-3/4″ | 4 | 5/8″ | 4 | Revit/CAD |
| PA0200 | 2″ | 2-3/4″ | 3-3/8″ | 4-5/8″ | 2-3/4″ | 4 | 5/8″ | 4 | Revit/CAD |
| PA0250 | 2-1/2″ | 3″ | 3-3/8″ | 5-5/8″ | 2-3/4″ | 4 | 5/8″ | 4 | Revit/CAD |
| PA0300 | 3″ | 3-1/4″ | 4-1/8″ | 5-5/8″ | 2-3/4″ | 4 | 5/8″ | 4 | Revit/CAD |
| PA0400 | 4″ | 3-1/2″ | 5-1/8″ | 7-1/4″ | 2-3/4″ | 4 | 5/8″ | 5 | Revit/CAD |
| PA0500 | 5″ | 4-1/2″ | 5-7/8″ | 8-1/2″ | 4 | 6 | 3/4″ | 7 | Revit/CAD |
| PA0600 | 6″ | 5″ | 6-1/4″ | 8-1/2″ | 4 | 6 | 3/4″ | 8 | Revit/CAD |
| PA0800 | 8″ | 6″ | 6-3/4″ | 10-7/8″ | 4 | 6 | 3/4″ | 9 | Revit/CAD |
| PA1000 | 10″ | 7″ | 7-3/4″ | 12-5/8″ | 4 | 6 | 3/4″ | 14 | Revit/CAD |
| PA1200 | 12″ | 8″ | 8-1/8″ | 14-3/4″ | 4 | 6 | 3/4″ | 16 | Revit/CAD |
