Metraflex carries three varieties of plate flanges, in stock. 150# Plate Steel Slip-On Flange Sizes ranging from 1-inch to 18-inch 304 Stainless Steel Plate Slip-On Flange, 150# Drilling Sizes ranging from 1-inch to 12-inch 316 Stainless Steel Plate Slip-On Flange,…
Product Description
Additional Resources
Submittals
Product Description

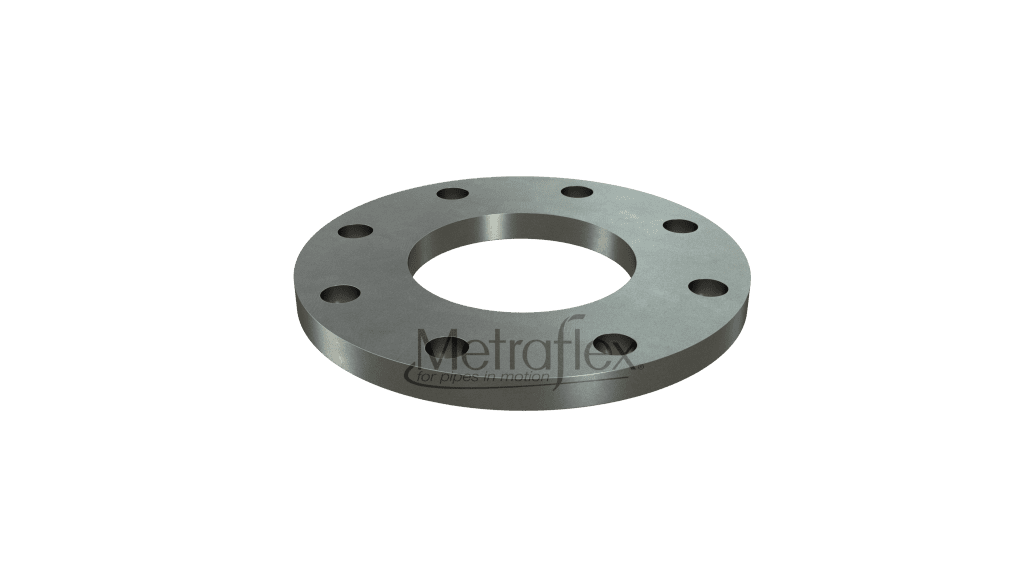

Metraflex carries three varieties of plate flanges, in stock.
- 150# Plate Steel Slip-On Flange
Sizes ranging from 1-inch to 18-inch - 304 Stainless Steel Plate Slip-On Flange, 150# Drilling
Sizes ranging from 1-inch to 12-inch - 316 Stainless Steel Plate Slip-On Flange, 150# Drilling
Sizes ranging from 1-inch to 12-inch
Product Highlights
Additional Resources
Submittals

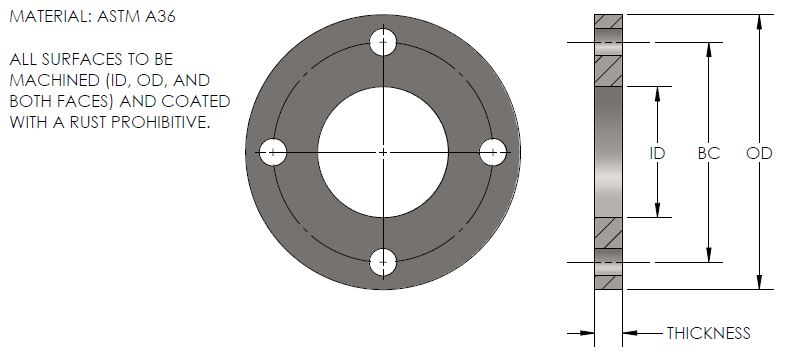

Carbon Steel Plate Flanges

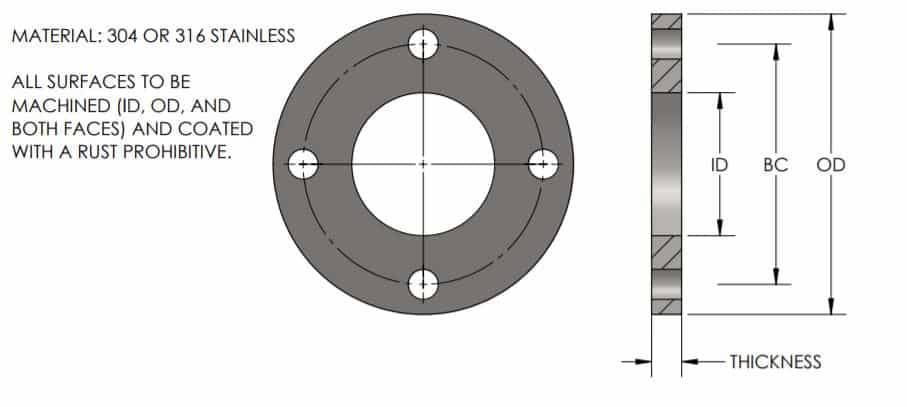

Stainless Steel Plate Flanges
150# Carbon Steel Slip-On Plate Flanges
| SIZE | THICKNESS | ID | OD | BC | BOLT HOLES | WEIGHT (LBS) | SUBMITTAL | |
|---|---|---|---|---|---|---|---|---|
| NO. | DIA. | |||||||
| 1″ | 5/8″ | 1.36″ | 4 1/4″ | 3 1/8″ | 4 | 5/8″ | 2.1 | Submittal |
| 1 1/4″ | 5/8″ | 1.70″ | 4 5/8″ | 3 1/2″ | 4 | 5/8″ | 2.4 | |
| 1 1/2″ | 5/8″ | 1.95″ | 5″ | 3 7/8″ | 4 | 5/8″ | 2.8 | |
| 2″ | 5/8″ | 2.44″ | 6″ | 4 3/4″ | 4 | 3/4″ | 4.0 | |
| 2 1/2″ | 5/8″ | 2.94″ | 7″ | 5 1/2″ | 4 | 3/4″ | 5.3 | |
| 3″ | 5/8″ | 3.57″ | 7 1/2″ | 6″ | 4 | 3/4″ | 6.1 | |
| 4″ | 5/8″ | 4.57″ | 9″ | 7 1/2″ | 8 | 3/4″ | 8.0 | |
| 5″ | 5/8″ | 5.66″ | 10″ | 8 1/2″ | 8 | 7/8″ | 10.5 | |
| 6″ | 5/8″ | 6.72″ | 11″ | 9 1/2″ | 8 | 7/8″ | 11.5 | |
| 8″ | 1″ | 8.72″ | 13 1/2″ | 11 3/4″ | 8 | 7/8″ | 22.4 | |
| 10″ | 1″ | 10.88″ | 16″ | 14 1/4″ | 12 | 1″ | 26.6 | |
| 12″ | 1″ | 12.88″ | 19″ | 17″ | 12 | 1″ | 41.0 | |
| 14″ | 1″ | 14.14″ | 21″ | 18 3/4″ | 12 | 1 1/8″ | 48.0 | |
| 16″ | 1″ | 16.16″ | 23 1/2″ | 21 1/4″ | 16 | 1 1/8″ | 61.3 | |
| 18″ | 1 1/16″ | 18.18″ | 22 3/4″ | 22 3/4″ | 16 | 1 1/4″ | 63.3 | |
150# Stainless Steel Slip-On Plate Flanges
| SIZE | THICKNESS | ID | OD | BC | BOLT HOLES | WEIGHT (LBS) | SUBMITTAL | |
|---|---|---|---|---|---|---|---|---|
| NO. | DIA. | |||||||
| 1″ | 1/2″ | 1.36″ | 4 1/4″ | 3 1/8″ | 4 | 5/8″ | 1.7 | Submittal |
| 1 1/4″ | 1/2″ | 1.70″ | 4 5/8″ | 3 1/2″ | 4 | 5/8″ | 2.0 | |
| 1 1/2″ | 1/2″ | 1.95″ | 5″ | 3 7/8″ | 4 | 5/8″ | 2.3 | |
| 2″ | 1/2″ | 2.44″ | 6″ | 4 3/4″ | 4 | 3/4″ | 3.3 | |
| 2 1/2″ | 1/2″ | 2.94″ | 7″ | 5 1/2″ | 4 | 3/4″ | 4.5 | |
| 3″ | 1/2″ | 3.57″ | 7 1/2″ | 6″ | 4 | 3/4″ | 4.9 | |
| 4″ | 1/2″ | 4.57″ | 9″ | 7 1/2″ | 8 | 3/4″ | 6.5 | |
| 5″ | 1/2″ | 5.66″ | 10″ | 8 1/2″ | 8 | 7/8″ | 7.3 | |
| 6″ | 1/2″ | 6.72″ | 11″ | 9 1/2″ | 8 | 7/8″ | 8.2 | |
| 8″ | 1/2″ | 8.72″ | 13 1/2″ | 11 3/4″ | 8 | 7/8″ | 11.8 | |
| 10″ | 5/8″ | 10.88″ | 16″ | 14 1/4″ | 12 | 1″ | 18.4 | |
| 12″ | 5/8″ | 12.88″ | 19″ | 17″ | 12 | 1″ | 26.8 | |
| 14″ | 5/8″ | 14.14″ | 21″ | 18 3/4″ | 12 | 1 1/8″ | 33.1 | |
| 16″ | 5/8″ | 16.16″ | 23 1/2″ | 21 1/4″ | 16 | 1 1/8″ | 47.5 | |
| 18″ | 3/4″ | 18.18″ | 25″ | 22 3/4″ | 16 | 1 1/4″ | 60 | |
