DWV Metraloop (PoopLoop II)
Metraloop®
The DWV Metraloop is a one-of-a-kind product that that is IAPMO listed for Drain Waste and Vent applications. The listing is very important if your project falls under the jurisdiction of the plumbing codes. Paragraph 301.2 of the Uniform Plumbing…
Product Description
Product Highlights
Additional Resources
Submittals
Product Description
The DWV Metraloop is a one-of-a-kind product that that is IAPMO listed for Drain Waste and Vent applications. The listing is very important if your project falls under the jurisdiction of the plumbing codes. Paragraph 301.2 of the Uniform Plumbing Code (UPC) requires that all components in a plumbing system to be a listed product. A plumbing inspector could require removal of any product that is not listed.

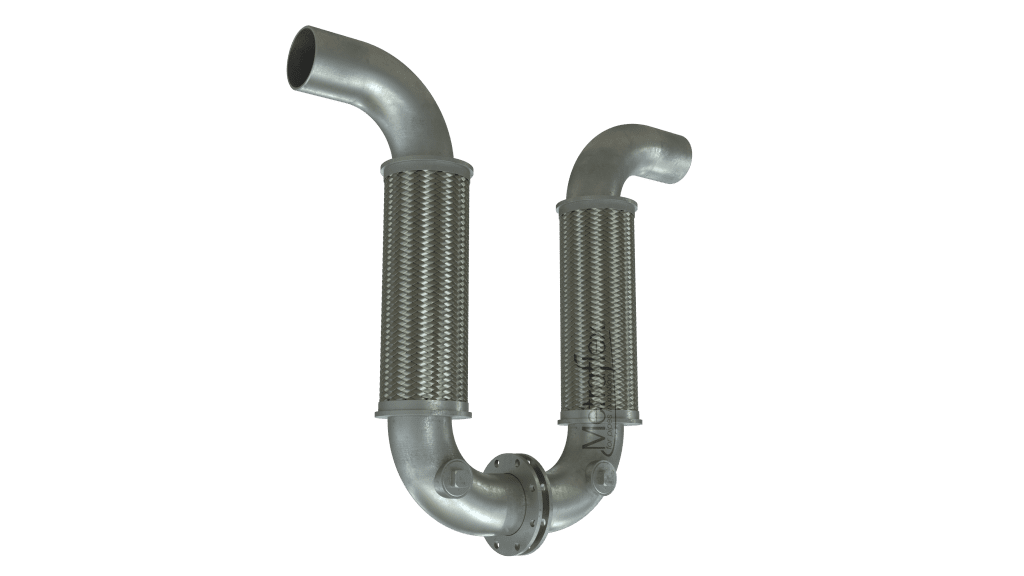

The DWV Metraloop is available in either flanged ends or no hub end connections. All DWV Metraloops are supplied in two halves joints with a floating flange that allows for each leg of the loop to be independently pitched.
Like all the products in the Metraloop family of products, the DWV Metraloop does not develop thrust loads.
Product Highlights
- Only IAPMO listed product of its kind.
- Compensates for building settlement
- Capable of movement in all directions
- Floating flange design allows for proper pitch of piping
- Seismic protection for DWV lines and anywhere else DWV lines expands/contracts
- Proudly made in the USA
Additional Resources
Submittals
150# Flanges 4″ Movement
150# Flanges 8″ Movement
No Hub Connection 4″ Movement
No Hub Connection 8″ Movement
DWV - 150# FLOATING FLANGES
| MODEL # | PIPE SIZE |
MOVEMENT | END TO END (in.) |
LENGTH (in.) |
PSI* | SPRING FORCE (lbs.) |
WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|
| MLFILP800400 | 4″ | ± 4 | 32.25 | 39 | 150 | 375 | 45 |
| MLFILP160400 | ± 8 | 32.25 | 47 | ||||
| MLFILP800500 | 5″ | ± 4 | 36.75 | 43 | 150 | 405 | 47 |
| MLFILP160500 | ± 8 | 36.75 | 52 | ||||
| MLFILP800600 | 6″ | ± 4 | 50 | 47 | 150 | 520 | 53 |
| MLFILP160600 | ± 8 | 50 | 56 | ||||
| MLFILP800800 | 8″ | ± 4 | 64 | 56 | 150 | 600 | 66 |
| MLFILP160800 | ± 8 | 64 | 67 | ||||
| MLFILP801000 | 10″ | ± 4 | 80 | 66 | 150 | 800 | 70 |
| MLFILP161000 | ± 8 | 80 | 77 | ||||
| MLFILP801200 | 12″ | ± 4 | 96 | 74 | 150 | 1400 | 78 |
| MLFILP161200 | ± 8 | 96 | 86 |
DWV - NO HUB CONNECTION
| MODEL # | PIPE SIZE |
MOVEMENT | END TO END (in.) |
LENGTH (in.) |
PSI* | SPRING FORCE (lbs.) |
WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|
| MLWILP80400 | 4″ | ± 4 | 38.25 | 39 | 150 | 375 | 45 |
| MLWILP160400 | ± 8 | 38.25 | 47 | ||||
| MLWILP80500 | 5″ | ± 4 | 42.75 | 43 | 150 | 405 | 47 |
| MLWILP160500 | ± 8 | 42.75 | 52 | ||||
| MLWILP800600 | 6″ | ± 4 | 55 | 47 | 150 | 520 | 53 |
| MLWILP160600 | ± 8 | 55 | 56 | ||||
| MLWILP800800 | 8″ | ± 4 | 68 | 56 | 150 | 600 | 66 |
| MLWILP160800 | ± 8 | 68 | 67 | ||||
| MLWILP801000 | 10″ | ± 4 | 82 | 66 | 150 | 800 | 70 |
| MLWILP161000 | ± 8 | 82 | 77 | ||||
| MLWILP801200 | 12″ | ± 4 | 96 | 74 | 150 | 1400 | 78 |
| MLWILP161200 | ± 8 | 96 | 86 |
