VRF Metraloop
Metraloop®
Introducing the new Variable Refrigerant Flow (VRF) Metraloop. The VRF Metraloop, rated for 700 psi @ 300° F, has been specifically designed by Metraflex to handle the demanding conditions of a VRF system. The VRF Metraloop can be used for other…
Product Description
Additional Resources
Submittals
Product Description
Introducing the new Variable Refrigerant Flow (VRF) Metraloop. The VRF Metraloop, rated for 700 psi @ 300° F, has been specifically designed by Metraflex to handle the demanding conditions of a VRF system. The VRF Metraloop can be used for other applications, however, there are other Metraloops that may be better suited.
The VRF Loop consists of two parallel sections of corrugated stainless-steel hose and braid, with stainless steel elbows with the Metraflex Exclusive Copper to Stainless Steel Conversion Fitting.

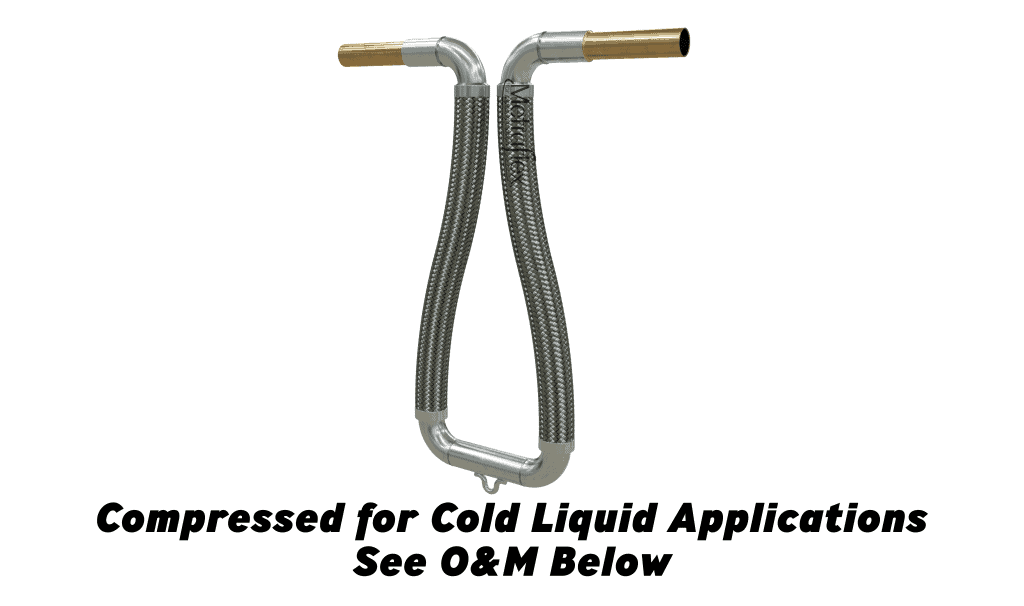

Due to the high pressures that VRF systems operate at, the proper installation of the VRF Metraloop is to cold spring the loop so that it returns to its neutral position during operation. This will prolong the life of the loop.
Product Highlights
Additional Resources
Submittals
VRF Metraloop Submittal
VRF Loop Data Table
| PART # | NOM SIZE | TUBE OD | WIDTH | HEIGHT | MOVEMENT | PRESSURE RATING | WEIGHT |
|---|---|---|---|---|---|---|---|
| MLVRF80050 | 1/2″ | 5/8″ | 28″ | 14 1/2″ | ±4″ | 700 PSI @ 300°F | 3 LBS |
| MLVRF80075 | 3/4″ | 7/8″ | 28 1/2″ | 19 3/4″ | ±4″ | 700 PSI @ 300°F | 5 LBS |
| MLVRF80100 | 1″ | 1⅛” | 28 3/4″ | 21″ | ±4″ | 700 PSI @ 300°F | 7 LBS |
| MLVRF80125 | 1¼″ | 1⅜” | 30″ | 23″ | ±4″ | 700 PSI @ 300°F | 10 LBS |
| MLVRF80150 | 1½″ | 1 5/8″ | 31″ | 25″ | ±4″ | 700 PSI @ 300°F | 13 LBS |
| MLVRF80200 | 2″ | 2⅛” | 33″ | 28 3/4″ | ±4″ | 700 PSI @ 300°F | 19 LBS |
ALL METRALOOPS FOR VRF SERVICE ARE RATED FOR FULL VACUUM.
