Suction Diffuser Vanes for Pump Applications

Download PDF

Centrifugal pumps require well-developed inlet flow. To have a well-developed flow pattern, pump manufacturers’ manuals recommend about 10 diameters of straight pipe upstream of the pump inlet flange. Unfortunately, piping designers and plant personnel must contend with space and equipment layout constraints and can’t always comply with this recommendation.

Instead, it is common to use an elbow close-coupled to the pump suction which creates a poorly-developed flow pattern.

Poorly-developed flow can cause cavitation*, excessive vibration and/or poor pump performance.

The results can be premature failure of the bearing, seal or impeller, high maintenance costs and high power consumption.

Additionally, today’s pumps are not as tolerant to off-design inlet conditions as in the past.

Both flow velocity and impeller speed have increased. The result is a lower equipment cost for a given operating point, but the tradeoff is a pump that is more sensitive to inlet conditions.

For example, consider a
double-suction pump with a close-coupled elbow at the inlet. This type of pump is designed for flow to be split evenly between each side the impeller. The elbow creates turbulence that splits
the flow unevenly across the impeller (Figure 1a). The pump performance can be degraded, and the flow can create an axial imbalance on the shaft which would result in shortened seal, bearing and impeller life.

*CAVITATION
Cavitation is the formation of and subsequent violent collapse of vapor bubbles in liquid. Bubbles or cavities of vapor form in the liquid when static pressure drops below vapor pressure. These bubbles implode when the static pressure rises above vapor pressure, creating a highpressure shock. This implosion can be extremely damaging if it is in the vicinity of a pump component, and creates a distinct noise.
Elbows close-coupled to pumps cause cavitation in two ways: First,
as liquid passes through an elbow it experiences a drop in pressure
on the inside radius. Vapor bubbles form in this area and can be carried into the impeller. Second, non-uniformity of the velocity exiting the elbow can cause local acceleration at the impeller vanes, resulting in low-pressure areas and cavitation.

Pump Applications

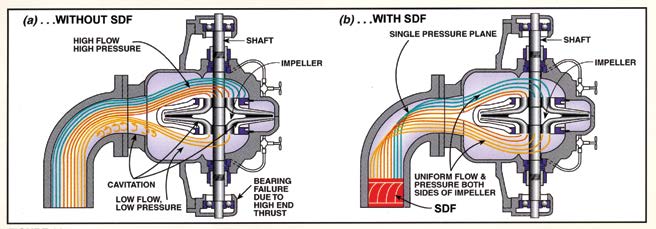

Figure 1 – top view of double-suction pump showing plain elbow (a) creates cavitation while a Suction Diffuser Flex (b) promotes an even fluid distribution.

For example, consider a double-suction pump with a close-coupled elbow at the inlet. This type of pump is designed for flow to be split evenly between each side of the impeller. The elbow creates turbulence that splits the flow unevenly across the impeller (Figure 1a). The pump performance can be degraded, and the flow can create an axial imbalance on the shaft which would result in shortened seal, bearing and impeller life.
The Suction Diffuser Vane solves this problem by imparting a rotation to the flow upstream of the elbow. Flow leaving the elbow has an even velocity distribution as it enters the pump impeller (Figure 1b). The pump will perform closer to the factory rating, cavitation and noise will decrease, and seal, bearing and impeller life will improve.

Case History 1

Consider the feed piping configuration of a 3550 rpm double suction pump utilizing an 8-inch Suction Diffuser Vane, shown in
Figure 2. Prior to installing the Suction Diffuser Vanes, operation had
been noisy and the pump required
an overhaul every four months. A vibration test of the pump prior to the Suction Diffuser Vane installation is shown in Figure 3(a), and just after Suction Diffuser Vane installation is shown
in Figure 3(b). The dramatic reduction in measured cavitation (6-14 range on the frequency scale) also resulted in a reduction in impeller imbalance (1 on frequency scale) which reduced noise, extended seal, bearing and impeller life, and increased head and flow. Prior to Suction Diffuser Flex installation,
three identical pumps in parallel operation were required to deliver the required flow rate.

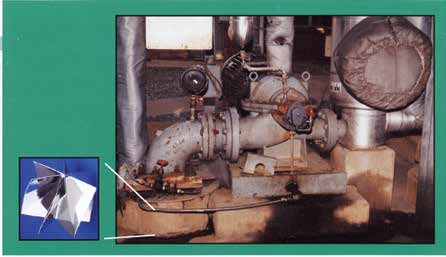

Figure 2 – Double suction pump fitted with an 8” Suction Diffuser flex Flex in front of the elbow

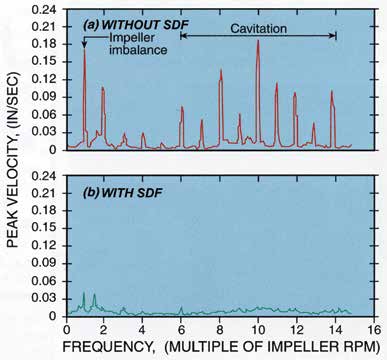

Figure 3 – Comparison vibration spectrum of 3,550 rpm doublesuction pump with (b) and without (a) a Suction Diffuser Flex

After the Suction Diffuser Flex was installed on each pump, two pumps met the flow rate requirement and the third pump
serves as an installed spare.

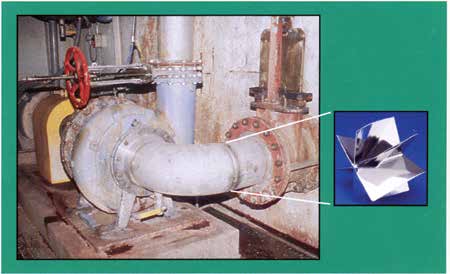

Figure 4 – Suction Diffuser Flex installation just upstream of a short radius elbow and overhung centrifugal pump.

Case History 2

Performance and maintenance improvements can be achieved
with overhung end-suction centrifugal pumps too. Figure 4 shows an end-suction centrifugal pump which required a complete rebuild every six months. After installing the Suction Diffuser Vane, the pump has been operating for 1-1/2 years without a rebuild.

Case History 3

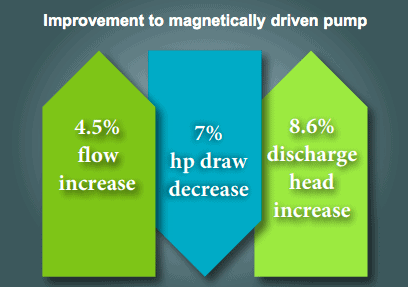

Dramatic improvements have also been witnessed with magnetically-driven pumps, which are extremely sensitive to cavitation and impeller imbalance. In particular, flow in one installation increased 4-1/2% from 1086 gpm to 1135 gpm after the Suction Diffuser Vanes were installed. At the same time, the horsepower draw dropped 7% from 43 to 40 and the discharge head increased 8.6% from 81 to 88 ft. The key benefit, however, was the reduced vibration which eliminated a frequent repair cost of $5000 on the shaft and bearings as well as an occasional severe-failure repair
cost of $14,000 per occurrence.
